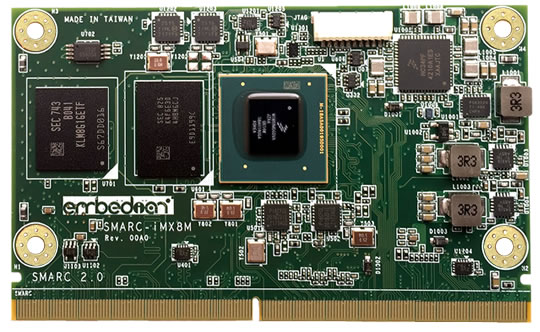

SMARC-iMX8M

Highlight

  • NXP i.MX8M ARM Cortex-A53 and Cortex-M4 up to 1.5GHz
  • 2GB/4GB LPDDR4 up to 3200MT/s, 16GB eMMC Flash, 1x SDIO
  • 24-bit dual-channeled LVDS, HDMI 2.0a/DP
  • 1 x GBE LAN w/AVB
  • 2 x CAN, 4 x UART, 5 x I2C, 2 x I2S, 2 x PCIe , 12 x GPIOs, 2 x SPI, 4-LANE and 2-LANE MIPI-CSI, 5 x USB2.0/3.0

Possible Applications

  • Building Control
  • Industrial Vehicle
  • Healthcare - patient monitor
  • Personal UAVs
  • Smart Cities
  • Smart Home Controls
  • Voice control and voice assistants
  • General Control Systems
  • Automotive Communication Systems

SMARC LOGOFreescale LOGOYocto Project LOGO
Add to Cart:
Max: 50
Price by Quantities/Lot
1-9
$170.00 		10-50
$160.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

SMARC-iMX8M-L-2G




SMARC-iMX8M-Q-2G




SMARC-iMX8M-Q-4G




SMARC-iMX8M-Q-2G-I




SMARC-iMX8M-Q-4G-I




SMARC-iMX8M-Q-2G-I-C




SMARC-iMX8M-Q-4G-I-C




The default pricing is based on i.MX8M Quad Lite Core with 2GB LPDDR4.

The SMARC-iMX8M offers high-performance processing for a low-power System-on-Module. It perfectly fits various embedded products, the growing market of connected and portable devices and segment for connected streaming audio/video devices, scanning/imaging devices and various devices requiring high performance but low-power applications.
The product is based on the NXP i.MX8M Dual/Quad Lite/Quad family of multi-purpose processors, featuring an ARMR CortexTM-A53 up to 1.5GHz with an additional 266MHz ARM Cortex-M4 core.
This heterogeneous multicore processing architecture enables the device to run an open operating system like Linux on the Cortex‐A53 core and an RTOS like FreeRTOSTM on the Cortex-M4 core for time and security critical tasks. The module connector has 314 edge fingers that mate with a low profile 314 pin 0.5mm pitch right angle connector.
Featuring NXP's i.MX8M System-on-Chip, Embedian's SMARC-iMX8M offers single- or dual-channel 18-bit/24-bit LVDS LCD, Gigabit Ethernet, HDMI/DP, SDHC, USB 2.0, USB USB 3.0, UARTs, CAN bus, PCIe and many peripheralinterfaces in a cost effective, low power, miniature package. Embedian's SMARC-iMX8M thin and robust design makes it an ideal building block for reliable system design with a wide range of products in target markets requiring high-performance processing with low power consumption, compact size and a cost-effective solution.
The SMARC-iMX8M is also a 100% SMARC 2.0 specification compliant module from Embedian.



Technical Information
Part Number
SMARC-iMX8M part number
  • 1: D (dual core, CPU running up to 2 x 1.5GHz)
        L (quad lite core, CPU running up to 4 x 1.5GHz, No VPU)
        Q (quad core, CPU running up to 4 x 1.5GHz)
  • 2: 2G (2GB LPDDR4 memory up to 3200MT/s)
         4G (4GB LPDDR4 memory up to 3200MT/s)
  • 3: I: Industrial temperature (-40oC ~ 85oC if 2GB LPDDR4 memory and -30oC ~ 85oC if 4GB LPDDR4 memory); Leave it Blank for commercial temperature.
  • 4: C: Conformal coating, only support industrial temp. variants; Leave it Blank if you do not need it.
Note: SMARC-iMX8M supports 1.8V (SMARC 2.0) VDDIO. 4GB LPDDR4 can only support Quad Core A53.
Example: SMARC-iMX8M-D-2G stands for dual core i.MX8M processor running up to 2 x 1.5GHz with 2GB LPDDR4 memory in normal operating temperature.
Compliance
SMARC 2.0 Compliant
Dimension (W x L)
82mm x 50mm
CPU
NXP i.MX8M ARM Cortex-A53 and Cortex-M4 up to 1.5GHz
Dual, Quad Lite and Quad Core Cortex-A53
266Mhz Cortex-M4
Main Memory
2GB/4GB LPDDR4 up to 3200MT/s
16GB eMMC (5.x) onboard
AT24C32 EEPROM onboard
Graphic Controller
GC7000Lite 4 shaders, OpenGL ES 3.1, OpenCL 1.2, OpenGL 3.0, OpenVG and Vulkan
Up to 4kp60 UHD resolutions
Video Processing Unit (VPU)
HEVC/H.265, H.264, VP9 Decoder 1080p60 MPEG-2, MPEG-4p2, VC-1, VP8, RV9, AVS, MJPEG, H.263 Decoder
No VPU for Quad Lite Core
Display Interfaces
Single channel 24 bit LVDS LCD or dual channel 24-bit LVDS LCD
  • Panel support signals (I2C, Power Enables, PWM)
  • 2nd LVDS channel is defined on SMARC 2.0 interface
  • Resolutions up 1,920 x 1,200 @60 fps at 24 bpp
One HDMI 2.0a/DP port resolution up to 4096 x 2160 at 60 Hz
MIPI-CSI Camera Interfaces
One 4-LANE and one 2-lane MIPI-CSI ports
SDIO Interfaces
One SDIO interfaces
  • 4 bit SDIO card interface with support lines
  • 8 bit eMMC interface with support lines
SPI Interfaces
Two SPI interfaces with 2 chip selects on each SPI channel
I2S Interfaces
Two I2S interfaces
  • Typically used for connection to I2S audio CODECs
I2C Interfaces
Five I2C interfaces
  • Power Management
  • General Purpose
  • Camera
  • LCD Display ID
  • HDMI
Asynchronous Serial Port (UART) Interfaces
Four asynchronous serial ports
Two with 4 wire handshake (RXD, TXD, RTS#, CTS#)
Two with data only (RXD, TXD)
Logic level signals
CAN Bus Interfaces
Two CAN bus interfaces
  • Logic level signals from Module based CAN bus protocol controllers
  • RXD, TXD only
  • Two Module GPIOs are designated for optional use as CAN bus error status inputs
USB Interfaces
One USB OTG 2.0 Ports with PHY
Four USB 2.0 Host Ports with PHY
Two USB 3.0 Host Ports with PHY
USB support signals (VBUS enable / Over-current detects, OTG support signals)
PCI Express
Two PCIe x 1 link
PCIe Gen2.1
Reference Clock Pair
Could be configured as PCIe target
Common PCIe wake signal
Gigabit Ethernet (with AVB)
One analog GBE MDI interface (Qualcomm Atheros AR8035 PHY on module)
No magnetics on Module
LED support signals
Watchdog Timer Interfaces

Real-Time Clock
External Seiko S35390A onboard
General Purpose I/O
Twelve GPIO signals
Specific alternate functions are assigned to some GPIOs
PWM / Tachometer capability
Camera support
CAN Error Signaling
HD Audio reset
System and Power Management Signals
Reset out and Reset in
Power button in
Power source status
Module power state status
System management pins
Battery and battery charger management pins
Carrier Power On control
Power Consumption (Typical)
Dual Core (2GB LPDDR4): 3W
Quad Core (4GB LPDDR4): 3.5W
Boot Source Select
Three pins to allow selection from Carrier Board
Select options to include boot from one of the following:
  • Module eMMC Flash (Default)
  • Module Remote Boot (Network Port)
  • Carrier SD Card

Power Supply
3V to 5.25V:
Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply

Heat Sink Solution
Heat Sink:
Note: The heat sink is a MUST for this product.

Software
Linux and Android:
Based on NXP lf-5.10.y_1.0.0, imx_4.19.35_1.0.0, imx_4.14.98_2.0.0_ga and imx_4.14.78_1.0.0_ga
Yocto Project Support
Ubuntu 18.04 ARM64 LTS, Debian 11 Bullseye, Debian 10 Buster and Debian 9 Stretch Support
Android 11, Android 10, Android Pie 9.0.0 and Oreo 8.1

Temperature
Industrial Temperature
Operating Temperature Range: -45o C ~ 85o C (For 4GB LPDDR4, -30o C ~ 85o C)
Storage Temperature Range: -40o C ~ 150o C
Junction Temperature Range: -40o C ~ 150o C

Form Factor
SMARC 2.0:
82 mm x 50 mm by SMARC 2.0 Specification

Evaluation Baseboard (EVK-STD-CARRIER-S20)
Features:
12V~24V Power input with 2.5mm DC Jack connector
3.5mm Audio Jack (SGTL5000 Audio Codec on Carrier)
RTC backup battery holder
Buzzer
LVDS, Display Port (DP)) and HDMI connector
2 x 10/100/1000Mbps RJ-45 connector
2 x RS232/422/485 DSUB9 connector, 2 x RS232 2.0mm Header
2 x USB host 2.0 type A connectors, 2 x USB host 3.0 type A connectors, 1 x mini USB client connector
1 x PCIex4 connector, 2 x mini PCIe connector
2 x CAN BUS header, 1 x 2x7-pin GPIO header, Audio Mic. in and Speaker out Audio Jack
2 x I2C header (for capacitive touch), 4 x SPI header, 1 Camera/MIPI header
1 x SDHC connector
A single 4KB EEPROM is provided on I2C0 that holds the board information. This information includes board name, serial number, and revision information.
1 x external watchdog reset
jumpers for LCD 3.3V or 5V voltage, boot selection, RS232 or RS485 selection
Form factor: 170mm (L) x 170mm (W) (mini-ITX form factor)
