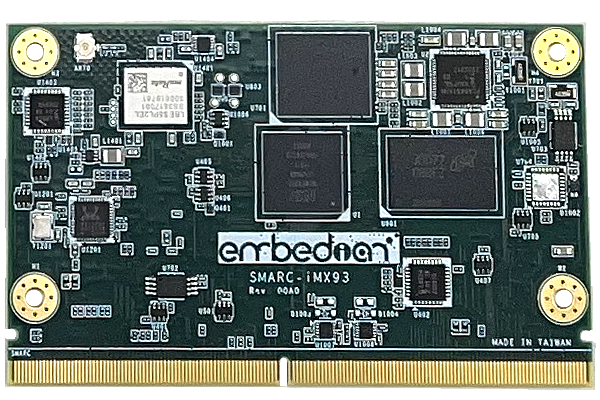

SMARC-iMX93

Highlight

  • NXP i.MX93 2 x 1.7GHz ARM Cortex-A55 and 1 x 250Mhz Cortex-M33
  • 1GB/2GB 16-bit LPDDR4x, 16GB eMMC Flash, 1x SDIO
  • Wi-Fi 11a/b/g/n/ac/ax + Bluetooth 5.3 module (optional)
  • 24-bit single-channeled LVDS, MIPI DSI
  • 2 x GBE LAN (one w/TSN)
  • 2 x CAN-FD, 4 x UART, 4 x I2C, 2 x I2S, 12 x GPIOs, 2 x SPI, 2-LANE MIPI-CSI, 1 x USB OTG and 4 x USB2.0

Possible Applications

  • Audio and Speech Recognition
  • Low-cost Gateway
  • Domain Controller Compute Off-load Engine
  • Public Address Systems
  • Audio/Video (AV) Receivers
  • Soundbar
  • Energy Gateway
  • Wireless or Networked Speakers

SMARC LOGOFreescale LOGOYocto Project LOGO
Add to Cart:

Price by Quantities/Lot
1-9
$130.00 		10-50
$120.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

SMARC-iMX93-1G




SMARC-iMX93-2G




SMARC-iMX93-1G-I




SMARC-iMX93-2G-I




SMARC-iMX93-1G-W




SMARC-iMX93-2G-W




SMARC-iMX93-1G-I-W




SMARC-iMX93-2G-I-W





The SMARC-iMX93 SMARC 2.2 module family is highly scalable and equipped with i.MX 93 Applications Processors manufactured by NXP. The processors integrate Arm Cortex-A55 cores running at 1.7GHz, bringing performance and energy efficiency to Linux-based edge applications and the Arm Ethos-U65 microNPU, enabling developers to create more capable, cost-effective and energy-efficient machine learning (ML) applications. The i.MX 93 processors deliver advanced security with integrated EdgeLock secure enclave and an efficient pixel pipeline to perform 2D graphics processing to realize cost-effective GUI solutions.
The SMARC-IMX93 provides fast and low power LPDDR4 memory technology with inline ECC support, combined with 16GB eMMC Flash memory. Various interfaces for embedded applications such as Dual Gigabit Ethernet, USB 2.0, CAN-FD, single-channel LVDS or MIPI DSI and MIPI CSI for connecting a camera are available. An on-board Wireless Module (optional) is provided as assembly options. The typical design power ranges from 2W to 4W. The module is compliant with the new SMARC 2.2 standard, allowing easy integration with SMARC baseboards. For evaluation and design-in of the SMARC-iMX93 module, Embedian provides a development platform and a starter kit. Support for Yocto Linux is available.

Technical Information
Part Number
SMARC-iMX93 part number
  • 1: 1G (1GB LPDDR4)
        2G (2GB LPDDR4)
  • 2: I: Industrial temperature (-40oC ~ 85oC); Leave it Blank if you do not need it.
  • 3: W: WiFi and Bluetooth; Leave it blank if no need.
Note: SMARC-iMX93 supports 1.8V (SMARC 2.2) VDDIO.
Example: SMARC-iMX93-1G-I stands for 1GB LPDDR4 memory in industrial (-40oC-85oC) operating temperature without WiFi/BT module.
Compliance
SMARC 2.2 Compliant
Dimension (W x L)
82mm x 50mm
CPU
NXP i.MX93 2 x 1.7GHz CortexTM-A55
Real-time 250Mhz ARM CortexTM-M33
ARM EthosTM-U65 microNPU (ML) 0.5 TOPS
PXP 2D GPU
Main Memory
16-bit 1GB/2GB LPDDR4x up to 3200MT/s
16GB eMMC (5.x) onboard
AT24C32 EEPROM onboard
Display Interfaces
single channel LVDS display (up to 1366x768@60Hz or 1280x800@60Hz)
MIPI DSI (up to 1920x1080p60)
MIPI-CSI Camera Interfaces
1x MIPI-CSI x2
SDIO Interfaces
One SDIO interfaces
  • 4 bit SDIO card interface with support lines
  • 8 bit eMMC interface with support lines
  • SDIO Wi-Fi 11a/b/g/n/ac/ax + Bluetooth 5.3 module (Optional)
SPI Interfaces
Two SPI interfaces with 2 chip selects on each SPI channel
I2S Interfaces
Two I2S interfaces
  • Typically used for connection to I2S audio CODECs
I2C Interfaces
Six I2C interfaces
  • Power Management
  • General Purpose
  • Camera0
  • LCD Display ID
Asynchronous Serial Port (UART) Interfaces
Four asynchronous serial ports
Two with 4 wire handshake (RXD, TXD, RTS#, CTS#)
Two with data only (RXD, TXD)
Logic level signals
FlexCAN Bus Interfaces
Two CAN-FD interfaces
  • Logic level signals from Module based FlexCAN bus protocol controllers
  • RXD, TXD only
USB Interfaces
One USB OTG 2.0 Ports with PHY
Four USB 2.0 Host Ports with PHY
USB support signals (VBUS enable / Over-current detects, OTG support signals)
Gigabit Ethernet (one supports QoS with TSN)
Two analog GBE MDI interfaces (Realtek RTL-8211FD-CG PHY on module)
No magnetics on Module
LED support signals
Watchdog Timer Interfaces
Real-Time Clock
External Micro Crystal RV-8263-C8 onboard
General Purpose I/O
Twelve GPIO signals
Specific alternate functions are assigned to some GPIOs
PWM / Tachometer capability
Camera support
CAN Error Signaling
HD Audio reset
System and Power Management Signals
Reset out and Reset in
Power button in
Power source status
Module power state status
System management pins
Battery and battery charger management pins
Carrier Power On control
Power Consumption (Typical)
2.1W or 4W (with WiFi Module)
Boot Source Select
Three pins to allow selection from Carrier Board
Select options to include boot from one of the following:
  • Module eMMC Flash (Default)
  • Module Remote Boot (Network Port)
  • Module eMMC Boot
  • Carrier SD Card

Power Supply
3V to 5.25V:
Operates directly from single level Lithium Ion cells, or fixed 3.3V or 5V power supply

Software
Linux:
Based on NXP 6.1.55_2.2.0 or 6.6.3_1.0.0
Yocto Project Support

Temperature
Industrial Temperature
Operating Temperature Range: -45o C ~ 85o C
Storage Temperature Range: -40o C ~ 150o C
Junction Temperature Range: -40o C ~ 150o C

Form Factor
SMARC 2.2:
82 mm x 50 mm by SMARC 2.2 Specification

Evaluation Baseboard (EVK-STD-CARRIER-S20)
Features:
12V~24V Power input with 2.5mm DC Jack connector
3.5mm Audio Jack (SGTL5000 Audio Codec on Carrier)
RTC backup battery holder
Buzzer
LVDS, Display Port (DP)) and HDMI connector
2 x 10/100/1000Mbps RJ-45 connector
2 x RS232/422/485 DSUB9 connector, 2 x RS232 2.0mm Header
2 x USB host 2.0 type A connectors, 2 x USB host 3.0 type A connectors, 1 x mini USB client connector
1 x PCIex4 connector, 2 x mini PCIe connector
2 x CAN BUS header, 1 x 2x7-pin GPIO header, Audio Mic. in and Speaker out Audio Jack
2 x I2C header (for capacitive touch), 4 x SPI header, 1 Camera/MIPI header
1 x SDHC connector
A single 4KB EEPROM is provided on I2C0 that holds the board information. This information includes board name, serial number, and revision information.
1 x external watchdog reset
jumpers for LCD 3.3V or 5V voltage, boot selection, RS232 or RS485 selection
Form factor: 170mm (L) x 170mm (W) (mini-ITX form factor)
