ARM Cortex Computing Platform

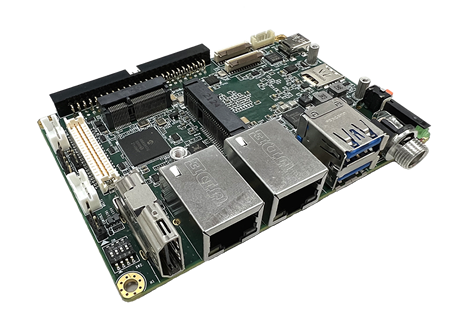

pITX-MX8M-PLUS

Highlight

  • NXP i.MX8M Plus 4 x 1.8GHz ARM Cortex-A53
  • M.2 and mini-PCIe
  • 2 x GBE LAN (one w/TSN)
  • USB 3.1, LVDS, HDMI, MIPI-DSI
  • Wi-Fi and 4G/5G Ready
  • 50-pin EIO50 expansion

Possible Applications

  • eCockpit
  • Motorcycle Engine Control Unit
  • Medical Imaging
  • Smart Home Robotic Appliance
  • Avionics
  • Electricity Generation
  • Energy Gateway
  • Automatic Vehicle Identification
  • Motion Control and Robotics
  • 3-Phase AC Induction Motor

SMARC LOGOFreescale LOGOYocto Project LOGO
Add to Cart:
Max: 30
Price by Quantities/Lot
1-9
$260.00 		10-50
$240.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

pITX-MX8M-PLUS-2G




pITX-MX8M-PLUS-4G




pITX-MX8M-PLUS-2G-I




pITX-MX8M-PLUS-4G-I





pITX-MX8M-PLUS features NXP i.MX8M Plus quad cores 1.8GHz ARM Cortex-A53 and 800MHz real-time Cortex-M7 co-processor. It is capable of providing outstanding Edge AI inference at 2.3 TOPS to perform machine learning inference directly on the edge, reducing cloud dependency, latency and is able to perform highly complex neural network functions like face and emotion detection, object detection and surveillance, which are key to applications such as smart and safe cities, retail, smart home and much more.
Upon the standard I/Os on the coastline, pITX-MX8M-Plus also offers the possibility of I/O Extension on the rear side by a 50-pin 2.00mm box header (EIO50) to provide flexible I/Os like more USB, I2C, RS232/285, SPI and CAN for your specific vertical requirements. In addition to that, an M.2 and mini-PCIe connectors on board make the WiFi and 4G/5G fuctions ready to use.


Features and Functionality
Part Number
pITX-MX8M-PLUS part number
  • 1: 2G (2GB LPDDR4 memory up to 4000MT/s)
        4G (4GB LPDDR4 memory up to 4000MT/s)
        6G (only for large project)
  • 2: I: Industrial temperature (-40oC ~ 85oC); Leave it Blank if you do not need it.
Example: pITX-MX8M-PLUS-4G stands for Quad core i.MX8M Plus processor with NPU and 4GB LPDDR4 memory in commercial operating temperature.
Form Factor
Pico-ITX and passive cooling solution
Processor
NXP i.MX8M Plus Quad ARM Core Cortex-A53 (Up to 1.8GHz)
Memory
2GB or 4GB LPDDR4 4000MT/s (6GB optional)
Flash: 16GB eMMC(5.x)
EEPROM: 4M (to store board part number, revision number, serial number and MAC address)
NPU
2.3 TOPS Neural Network performance
Display
HDMI: 1 x HDMI 2.0a, up to 3840 x 2160 at 30Hz
LVDS: 1 x Single Channel or 1 x Dual Channel 24 bit LVDS, Backlight Power 5V or 12V, Max. 1.5A
MIPI-DSI: 1 4-Lane MIPI-DSI (shared with second channel LVDS interface)
Graphic (GPU) Engine
GC7000UL with 2D/3D Graphic Acceleration supporting 1G Pixel/s
OpenVG 1.1, OpenGL ES3.1, Vulkan, and OpenCL 1.2 FP
H/W Video Codec (VPU)
Decoder: 1080p60 HEVC/H.265 Main, VP9 Profile 0/2, VP8, AVC/H.264 Baseline/Main/High
Encoder: 1080p60 AVC/H.264, HEVC/H.265
2 x Ethernet (RJ-45)
Chipset: NXP i.MX8M Plus integrated RGMII
One supports QoS with TSN
Speed: 10/100/1000 Mbps
PHY: Realtek RTL8211FD(I)-CG
Watchdog Timer
Chipset: TI TPS3828-33DBVR
200ms timeout timer
TPM
Support TPM 2.0 (ST33HTPH2X32AHE1 chipset)
Audio
Audio Codec WM8960
Headphone Out
Microphone In
RTC
RTC Backup Battery by 2-pin type connector
Reset
1 Reset Button
IO
USB: 2 x USB 3.1 Gen 1 Host (Type A), 1x USB client (Mini Type B)
Debug: 1 x UART as debug console by pin header
Camera Input: 2 x 4-Lane MIPI-CSI2
Rear Expansion IO
EIO50 50-pin 2.00mm Box Header
1 x USB 3.1 Host, 3 x USB 2.0 Host, 2 x CAN-FD, 1 x SPI, 2 x I2C, 4 x UARTs and 6 x GPIOs
LED
1 x Green Power LED
1 x Yellow User Programmable LED
Expansion
1 Mini-PCIe: 1 x Full Size Mini-PCIe Slot (USB 3.1 and USB 2.0 Signals only)
1 M.2 2230 Key E Slot (USB 2.0/I2C/UART/PCIe/UART/SDIO/I2S)
EIO50 50-pin 2.00mm Box Header (4 x UARTs, 1 x USB 3.1, 2 x USB 2.0, 2 x I2C, 1 x SPI, 6 GPIOs, 2 x CAN-FD)
SD Socket: 1 x Micro SD Card Socket
SIM Socket: 1 x Nano SIM Card Socket
Power
Power Supply Voltage: 12V DC-IN by lockable DC Jack (or 2-pin type connector by BOM option)
Power Consumption: 7.21 W
Environment
Operational Temperature: 0o ~ 60o C (Commercial) / -40o ~ 85o C (Industrial)
Operating Humidity: 5% ~ 95% Relatively Humidity, non-condensing
Mechanical
Dimensions: 100 x 72 x 19 mm
Weight: 0.08Kg (0.16Kg with Heat Sink)
Certifications
CE/FCC Class B
Boot Source Select
Three pins to allow selection
Select options to include boot from one of the following:
  • eMMC Flash
  • Micro SD Card (Default)

Ordering Information
pITX-MX8M-PLUS-2G
pITX-MX8M-PLUS SBC with 2GB LPDDR4, 16GB eMMC, Commercial Temp.
pITX-MX8M-PLUS-2G-I
pITX-MX8M-PLUS SBC with 2GB LPDDR4, 16GB eMMC, Industrial Temp.
pITX-MX8M-PLUS-4G
pITX-MX8M-PLUS SBC with 4GB LPDDR4, 16GB eMMC, Commercial Temp.
pITX-MX8M-PLUS-4G-I
pITX-MX8M-PLUS SBC with 4GB LPDDR4, 16GB eMMC, Industrial Temp.

Heat Sink Solution
Heat Sink:
Note: The heat sink is a MUST for this product.

Software
Linux and Android:
Based on NXP imx_5.10.9_1.0.0,imx_5.15.71
Yocto Project Support
Debian 11 Bullseye Support
Android 11.0.0_2.0.0

Packing List
Packing List
1 x pITX-MX8M-Plus SBC

Optional Accessories
125021500AUD-00
Audio HP Out, Mic In and Line In Cable
VTT-HS-9A981-A1
Heat Sink for pITX-MX8M-PLUS
125040700LCD-00
7-inch LVDS Display G070VW01 V0
125023000LVD-00
LVDS Cable for 7-inch G070VW01 V0
125022000BKT-00
LVDS Backlight Cable for 7-inch G070VW01 V0
12605M200ABG-00
M.2 WiFi Module (IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 5.3 Combo Module with 88W8997 chipset)
pITX-IOB-2201
50-pin IO Extension Board with 2 x CAN, 3 x RS232, 1 x RS484 (Terminal Blocks), 1 x USB 2.0 Type-A, 1 x USB 2.0+3.0 Type-A, SPI, I2C
126010101245-00
Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M BLK
12506100003HF4-00
Antenna Cable SMA (F) to MHF4 (F), 100mm

50-pin I/O expansion board (pITX-IOB-2201)
Features:
1 x USB 3.0+2.0 dual-stack Type A connector
1 x USB 2.0 Type A Connector
1 x SPI Header
3 x RS232, 1 x RS485
2 x CAN-FD
6 x GPIO (-24V-24V)
2 x 2-pin I2C 2.0mm Header
Capacitity Touch RST and INT Header
146mm x 31mm
