SBC-SMART-MEN

Highlight

  • TI Sitara AM335X @600MHz, 800MHz or 1GHz
  • 512MB DDR3L
  • 4GB eMMC Flash
  • 6 x RS232s, 3 x USB Host 2.0
  • SDHC/SDIO
  • 10/100Mbps Ethernet x 2
  • 18-bit and 24-bit LVDS LCD interface
  • CANbus, I2C x 2, Stereo Audio, GPIO
  • Typical 2.5W

Possible Applications

  • HMI/ In-Home Display
  • PLC/ SCADA
  • Point of Sales
  • Home Gateway
  • Medical Devices
  • Smart Toll Systems
  • Connected Vending Machines
  • Education

SMARC LOGOTexas Instrument LOGOYocto Project LOGO
Add to Cart:
Max: 30
Price by Quantities/Lot
1-9
$190.00 		10-30
$180.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

SBC-SMART-MEN-3354-600




SBC-SMART-MEN-3354-01G

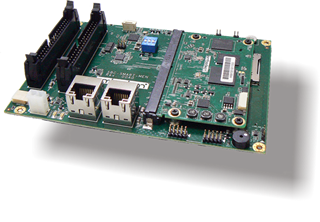

SBC-SMART-MEN comes with 6 x RS232s, 3 x USB Host 2.0, 2 x Fast LANs and LVDS. It is a Single Board Computer based on TI Sitara AM335X ARM Cortex-A8 technology (600MHz, 800MHz or 1GHz).
This product is aiming to devices that need interface many legacy peripherals and need a higher resolution display with Ethernet connectivity -- all while keep the power level low and price competitive. The main feature of SBC-SMART-MEN is a lack of real-world ports except for an SD slot and dual Fast Ethernet ports, and the inclusion of additional USB and six serial interfaces.
The SBC consists of a SMARC module and a application-oriented carrier board. Users can easily upgrade or expand their system by taking advantages of this architecture.

Technical Information
Processor:
TI Sitara AM335X
ARM Cortex-A8 at 600MHz, 800MHz or 1GHz
Memory:
Onboard 4GB eMMC Flash (eMMC 5.x)
Onboard 512MB DDR3L (400Mhz x 2)
Onboard AT24C32 EEPROM
Networking:
2 x 10/100 Mbps Ethernet (vertical RJ45)
Display:
Single channel LVDS 18-bit color depth connector
Single channel LVDS 24-bit color depth connector
Expansion:
1 x SDHC/SDIO, 3 x USB 2.0 Host (on 2.54mm IDC header)
USB:
2 x USB 2.0 Host, 1 x USB 2.0 OTG, 1 x Serial-to-USB (Client)
Additional Interface:
6 x RS232s (transceiver onboard, two with handshaking and one can be configured as RS422/RS485)
2 x SPIs
2 x I2C
Audio with Microphone input and Headphones output
1 x CAN Bus (Transceiver onboard)
RTC (Seiko S35390-A) backup battery onboard
1 x Buzzer
11 x GPIOs
1 x 4-wire touch connector
Other Features:
Invisible reset jumper
external watchdog reset (reset from the power source)
LCD LED backlight driver onboard
SW Support:
Linux 4.9.41 (Based on TI Processor SDK 04.01.00.06) or
Linux 4.4.12 (Based on TI Processor SDK 03.00.00.04) or
Linux 4.1.10 (Based on TI Processor SDK 02.00.01.07) or
Linux 3.14.43 (Based on TI Processor SDK 01.00.00.03) or
Linux 3.12.y (Based on TI AMSDK 7.0.1) or
Linux 3.2 (Based on TI AMSDK 6.0.0)
Support Ubuntu 14.04/16.04 LTS or Debian 9
Support Yocto Project
Software Building Environment:
Yocto/OpenEmbedded
Power Consumption:
2 Watts Typical

Environment
Thermal:
Normal Temperature: 0oC ~ 60oC
Industrial Temperature: -40o ~85oC
Humidity:
10% ~ 90% relative humidity, non-condensed

Power Supply
Single 5V
2-pin 4.2mm mini fit male 180D

Form Factor
3.5-inch:
102 mm (L) x 145 mm (W)

Document Deliverable
Linux BSP
User’s Manual
PinMux file for TI PinMux Utility
Toolchain

Ordering Information
Part Number:
Description
SBC-SMART-MEN-3354-600
SBC-SMART-MEN with TI AM3354 running at 600MHz in normal temperature
SBC-SMART-MEN-3354-01G
SBC-SMART-MEN with TI AM3354 running at 1GHz in normal temperature
SBC-SMART-MEN-3354-800-I
SBC-SMART-MEN with TI AM3354 running at 800MHz in industrial temperature
EVK-SMARC-T335X-XXX
SMARC-T335X Evaluation Board, Package includes a SMARC-T335X module, a SMARTBASE-T3 baseboard, a 5V Power Supply and a RJ-48 to DB9 console cable
EVK-SMARC-T335X-XXX-I
SMARC-T335X-I Evaluation Board, Package includes a SMARC-T335X-I module, a baseboard, a 5V Power Supply and a RJ-48 to DB9 console cable
