ARM Cortex Computing Platform

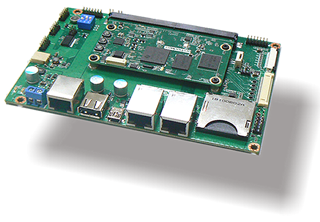

SBC-SMART-BEE

Highlight

  • TI Sitara AM335X @600MHz, 800Mhz or 1GHz
  • 512MB DDR3
  • 4GB eMMC Flash
  • 18-bit and 24-bit LVDS LCD
  • SDHC/SDIO
  • 10/100Mbps Ethernet x 2
  • COM x 3, USB 2.0 x 2
  • CANbus, I2C x 3, Stereo Audio, GPIO
  • Typical 2.5W

Possible Applications

  • HVAC Building and Control Systems
  • Fire Alarms
  • Smart Grid and Smart Metering
  • Home Gateway
  • HMI/ In-Home Display
  • Smart Toll Systems
  • Connected Vending Machines
  • Fiscal Printer/ Weighing Scales/ Currency Counter
  • Education
  • The Internet of Things (IOT)
  • Access Control


SMARC LOGOTexas Instrument LOGOYocto Project LOGO
Add to Cart:
Max: 30
Price by Quantities/Lot
1-9
$180.00
10-30
$170.00

* On-line purchase offers convenience at sample development stage. For a larger number of orders, please click "Request for Quotation" at left-hand side of this page. We will offer much better discount price.

Please Choose:

SBC-SMART-BEE-3354-600




SBC-SMART-BEE-3354-01G






SBC-SMART-BEE Single Board Computer is based on TI Sitara AM335X ARM Cortex-A8 technology (600MHz,800Mhz or 1GHz).
This product is aiming to replace current ARM9, ARM11 and part of the Cortex-A8 markets in higher resolution displays, faster performance and multiple, flexible integrated connectivity options -- all while keep the power level low and price competitive.
The SBC consists of a SMARC module and a application-oriented carrier board. Users can easily upgrade or expand their system by taking advantages of this architecture.

Technical Information
Processor:
TI Sitara AM335X

ARM Cortex-A8 at 600MHz, 800MHz or 1GHz

Memory:
Onboard 4GB eMMC Flash (eMMC 5.x)

Onboard 512MB DDR3L (400Mhz x 2)記憶體

Onboard AT24C32 EEPROM

Networking:
2 x 10/100 Mbps RJ45 Ethernet Jack

Display:
Single channel LVDS 18-bit and 24-bit color depth interfaces (two connectors)

Expansion:
1 x SDHC/SDIO, 1 x USB 2.0 Host Type A Connector

USB:
1 x USB 2.0 Host Type A connector, 1 x USB 2.0 OTG mini-USB connector

Additional Interface:
3 x RS232s (transceiver onboard, and one can be configured as RS422/RS485)

2 x SPIs header

2 x I2C header

Audio with Microphone input and Headphones output header

1 x CAN Bus Header (Transceiver onboard)

RTC (Seiko S35390-A) backup battery onboard

1 x Buzzer

12 x GPIOs header

1 x 4-wire touch connector

Other Features:
Invisible reset jumper

external watchdog reset (reset from the power source)

LCD LED backlight driver onboard

SW Support:
Linux 4.9.41 (Based on TI Processor SDK 04.01.00.06) or
Linux 4.4.12 (Based on TI Processor SDK 03.00.00.04) or
Linux 4.1.10 (Based on TI Processor SDK 02.00.01.07) or
Linux 3.14.43 (Based on TI Processor SDK 01.00.00.03) or
Linux 3.12.y (Based on TI AMSDK 7.0.1) or
Linux 3.2 (Based on TI AMSDK 6.0.0)

Support Ubuntu 14.04/16.04 LTS or Debian 9

Support Yocto Project

Power Consumption:
2.5 Watts Typical


Environment
Thermal:
Normal Temperature: 0oC ~ 60oC

Industrial Temperature: -40o ~85oC

Humidity:
10% ~ 90% relative humidity, non-condensed


Power Supply
Single 5V
Terminal block connector and miswiring protection


Form Factor
3.5-inch:
102 mm (L) x 145 mm (W)


Document Deliverable
Linux, Android JellyBean 4.2.2 and Android Kitcat 4.4 BSP

User’s Manual

PinMux file for TI PinMux Utility

Toolchain


Ordering Information
Part Number:
Description

SBC-SMART-BEE-3354-600
SBC-SMART-BEE with TI AM3354 running at 600MHz in normal temperature

SBC-SMART-BEE-3354-01G
SBC-SMART-BEE with TI AM3354 running at 1GHz in normal temperature

SBC-SMART-BEE-3354-800-I
SBC-SMART-BEE with TI AM3354 running at 800MHz in industrial temperature

EVK-SMARC-T335X-XXX
SMARC-T335X Evaluation Board, Package includes a SMARC-T335X module, a SMART-BEE baseboard, a 5V/3A Power Supply, an image pre-installed SD card and a RJ-48 to DB9 console cable

EVK-SMARC-T335X-XXX-I
SMARC-T335X-I Evaluation Board, Package includes a SMARC-T335X-I module, a SMART-BEE baseboard, a 5V/3A Power Supply, an image pre-installed SD card and a RJ-48 to DB9 console cable
