Please Choose:EVK-SMARC-T3354-600EVK-SMARC-T3354-01GEVK-SMARC-T3354-800-IEVK-SMARC-T335X serves as an evaluation and starter kit for SMARC-T335X computer on module. Use it to quickly turn your SMARC-T335X into fully working device for hardware and software development. Beside that, it enable early validation of the interfaces that needed in your carrier design. Beyond this, it facilitates early application development for carrier board designs and production testing. Further in the product cycle, it acts as a reference platform to help root-cause any incompatibilities between the SMARC module and cariier board. Packing Lists
Packing Lists:

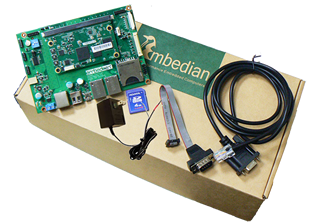

1 x SMARC T335X module
1 x SMART-BEE carrier board
4 x M2.5 screws
1 x 4GB SDHC card with image pre-installed
1 x 5V/3A Power Supply
1 x RJ45-DB9 console debug cable
1 x 10-way box header to DB9 cable
Evaluation Baseboard Features
5V Power input with screw type connector and miswiring protection
Invisible reset jumper
LED backlight driver onboard
RTC backup battery
Buzzer
18-bit and 24-bit LVDS LCD connector
2 x 10/100Mbps RJ-45 connector
1 x serial debug RJ-48 connector
1 x USB host type A connector, 1 x mini USB client connector
1 x 4-wire touch connector
1 x CAN BUS header, 2 x RS232 header (One can be configured as RS422/485), 1 x 2x7-pin GPIO header, Audio microphone and headphone header, 2 x I2C header (for capacitive touch) and 2 x SPI header
1 x SDHC connector
A single 4KB EEPROM is provided on I2C0 that holds the board information. This information includes board name, serial number, and revision information.
1 x external watchdog reset
jumpers for LCD 3.3V or 5V voltage, boot selection, RS232 or RS485 selection
Form factor: 102mm (L) x 145mm (W) (3.5-inch form factor)
Document Deliverable
Linux, Linux, Android JellyBean 4.2.2 and Android Kitcat 4.4 BSP
Carrier Board Design Guide
User’s Manual
Carrier Board Reference Schematics (pdf and OrCAD format)
PinMux file for TI PinMux Utility
Toolchain
Ordering Information
Part Number:
Description
EVK-SMARC-T3354-600
SMARC-T3354 Evaluation Kit with TI AM3354 running at 600MHz in normal temperature
EVK-SMARC-T3352-01G
SMARC-T3352 Evaluation Kit with TI AM3352 running at 1GHz in normal temperature
EVK-SMARC-T3354-01G
SMARC-T3354 Evaluation Kit with TI AM3354 running at 1GHz in normal temperature
EVK-SMARC-T3354-800-I
SMARC-T3354 Evaluation Kit with TI AM3354 running at 800MHz in industrial temperature
