ARM Cortex Computing Platform

VTT-HS-8J066B1

Highlight

  • Complete SMARC-iMX8MP module thermal solution.
  • Especially designed for i.MX8M PLUS SMARC module.
  • Mounted to the SMARC carrier board by means of 4 screws of M2.5 x 12mm thread each
  • Additional M3 threaded holes for attaching a fan.
  • Come with 10mmx10mmx1.3mm thermal pad.

Possible Applications

  • SMARC-iMX8MP-Q-2G(-I)
  • SMARC-iMX8MP-Q-4G(-I)
  • SMARC-iMX8MP-Q-6G(-I)


SMARC LOGOYocto Project LOGO
Add to Cart:

Price by Quantities/Lot
1-239
$12.00
240
$10.00

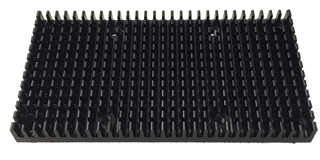

The VTT-HS-8J066B1 Heatsink is a complete thermal solution for SMARC-iMX8MP. Heatsink is mounted to the SMARC carrier board by means of 4 screws of M2.5 x12mm thread each. The screws can be mounted from the top. There are additional M3 threaded holes for attaching a fan to the heat sink, if required. A 10mmx10mmx1.3mm thermal pad is also included in this part.

Not all SMARC modules from Embedian require heat sink spreader. This VTT-HS-8J066B1 SMARC Module Heatsink is designed especially for Embedian i.MX8M Plus SMARC modules.
